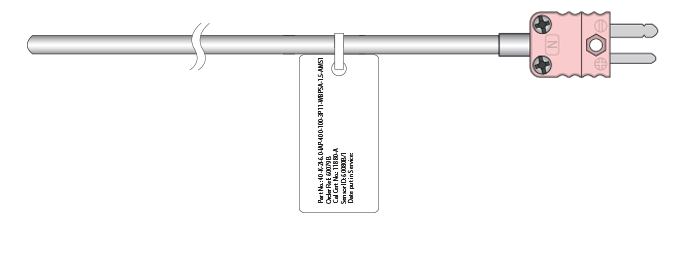

Heat Treatment Thermocouple with Miniature Plug

AMS2750 Approved Thermocouples for Heat Treatment

Calibrated Mineral Insulated Thermocouples
Our range of AMS2750 NADCAP, BAC5621 or CQI-9 compliant mineral insulated thermocouples are designed to meet the high quality and accuracies demanded for heat treatment applications within the Aerospace industry. Through careful material selection and a comprehensive calibration program in our ISO17025 UKAS accredited laboratory, we can offer a wide range of sheath diameters and materials from stock with quick manufacture times. Their semi rigid construction allows them to be bent and formed to suit particular applications without impairing performance.
  • Calibrated in line with AMS 2750 NADCAP, BAC5621 or
    CQI-9 requirements
  • Suitable for use in Temperature Uniformity Surveys (TUS), System Accuracy Tests (SAT), Control Recording and Monitoring and Load sensors
  • Batch calibration certificate supplied as standard
  • Sensors are individually tagged and numbered for full traceability
  • Available in thermocouple types N, K, T and J
  • Wide range of sheath diameters and materials
Calibration Accuracies:

Code Standard Accuracy Supplied Permitted Applications Certification
AMS1 AMS2750 ±1.1ºC or 0.4% of reading (whichever is greater), end to end deviation of material batch no greater than 1.1ºC Temperature Uniformity Survey (TUS)
System Accuracy Test (SAT)
Control, Monitoring & Recording (Class 1 & 2)
An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details section for a detailed explanation).
Please note: UKAS calibration is available on request.
BAC2 BAC5621 ±1.1ºC <538ºC or 0.4% of reading >538ºC, end to end deviation of material batch no greater than 0.6ºC Secondary/Field Test Sensor
CQI1 CQI-9 ±1.1ºC or 0.4% of reading (whichever is greater), end to end deviation of material batch no greater than 1.1ºC Temperature Uniformity Survey (TUS)
System Accuracy Test (SAT)
Control, Monitoring & Recording (Class 1 & 2)
Load



Heat Treatment Thermocouple Enquiry Form

1. Thermocouple Type
2. Sheath Material
3. Sheath Diameter

4. Sheath Length

 mm
5. Types of Sensing Junction

Illustration Select
INSULATED Junction
Duplex Element Required? (please tick box)
6. Miniature Plug Style

Illustration Select
3P6M - Miniature Plug
Plastic, rated to 220ºC
3P6MH - Miniature Plug
Plastic, rated to 300ºC
3P6MUH - Miniature Plug
Plastic, rated to 425ºC
3P6MC - Miniature Plug
Ceramic - rated to 600ºC
7. Tagging Options

Illustration Select
Plastic ID Label
For use with all end seals up to 70ºC
Laser Etched Metal Tag
For use with all end seals above 250ºC
Laser Etching on Sensor
Laser etch of serial number. This can be instead of or in addition to either of the options above
8. Calibration Accuracies

Calibration Type Select
AMS1 - AMS2750
BAC2 - BAC5621
CQI1 - CQI-9
Your chosen calibration is:

AMS1- AMS2750
Accuracy:
±1.1ºC or 0.4% of reading (whichever is greater), end to end deviation of material batch no greater than 1.1ºC
Permitted Applications:
Temperature Uniformity Survey (TUS)
System Accuracy Test (SAT)
Control, Monitoring & Recording (Class 1 & 2)
An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details section for a detailed explanation). Please note: UKAS calibration is available on request.
Your chosen calibration is:

AMS-2 - AMS2750
Accuracy:
±2.2ºC or 0.75% of reading (whichever is greater), end to end deviation of material batch no greater than 1.1ºC
Permitted Applications:
Temperature Uniformity Survey (TUS)
Control, Monitoring & Recording (Class 3,4,5,6)
Load
An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details section for a detailed explanation). Please note: UKAS calibration is available on request.
Your chosen calibration is:

BAC2 - BAC5621
Accuracy:
±1.1ºC <538ºC or 0.4% of reading >538ºC, end to end deviation of material batch no greater than 0.6ºC
Permitted Applications:
Secondary/Field Test Sensor
An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details section for a detailed explanation). Please note: UKAS calibration is available on request.
Your chosen calibration is:

CQI1 - CQI-9
Accuracy:
±1.1ºC or 0.4% of reading (whichever is greater), end to end deviation of material batch no greater than 1.1ºC
Permitted Applications:
Temperature Uniformity Survey (TUS)
System Accuracy Test (SAT)
Control, Monitoring & Recording (Class 1 & 2)
Load
An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details section for a detailed explanation). Please note: UKAS calibration is available on request.
9. Calibration Standard
10. Report Type

Details Select
Standard 3 Page Report
An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details page for a detailed explanation)
Custom Report
As the Standard Report but with your choice of range and interval
Your chosen Report Type is:

An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details page for a detailed explanation).
Your chosen Report Type is:

A Custom Report
Please enter the calibration range:
Please enter the calibration interval:
11. Quantity Required

Contact Details

Company Name


Your Name


Title/Dept.


Email


Telephone


Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below



Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.

BACK TO TOP
Products

Contact Us

About TC

FREE Guide

Privacy Policy

Terms and Conditions

Sitemap
FREE Wallchart Guide to
Thermocouples and RTD Sensors


Join over 500,000 engineers and buyers who have already received our FREE 74 page A3 Guide to Thermocouple and Resistance Thermometry

Company Name
  Address 1
Your Name
  Address 2
Title / Dept.
  County / Region / State
Email
  Postcode / ZIP Code
Telephone
  Country
Company Name
Your Name
Title / Dept.
Address 1
Address 2
County / Region / State
Postcode / ZIPCode
Country
Email
Telephone

We will only ever use the information you provide to occasionally contact you regarding our products and we will never disclose your details to a third party. Our privacy policy can be viewed here



I agree to the terms and conditions listed in the Privacy Policy

View our ISO 90001/2008 Certficate
View our ISO 90001/2008 Certficate







Thermocouple Sensors
Mineral Insulated Thermocouples
Thermocouples with Mini Plug
Thermocouples with Terminal Head
Thermocouples with Cable
High Temperature Thermocouples
General Purpose Thermocouples
ATEX/IECex Thermocouple Sensors
Ceramic Thermocouple Sensors
Fast Response Thermocouple Sensors
Autoclave Thermocouple Sensors
Surface Measurement Thermocouple Sensors
FEP Insulated Thermocouple

Platinum Resistance Thermometers
Mineral Insulated RTD Pt100 Sensors
Rigid Stem RTD Pt100 Sensors
Hand Held RTD Pt100 Sensors
Surface Measurement RTD Pt100 Sensors
RTD Pt100 Sensors with Cable
RTD Pt100 Sensors with Mini Plug
Autoclave RTD Pt100 Sensors
RTD Pt100 with Terminal Head
ATEX/IECex Platinum Resistance Thermometers
Fast Response RTD Pt100 Sensors
Air Temperature RTD Pt100 Sensors
Magnetic RTD Pt100 Sensors
Cable
PVC Single Pair Thermocouple Cable
PFA Single Pair Thermocouple Cable
Fibreglass Single Pair Thermocouple Cable
PVC Multipair Thermocouple Cable
PFA Multipair Thermocouple Cable
Fibreglass Multipair Thermocouple Cable
PVC RTD Pt100 Cable
PFA RTD Pt100 Cable
Fibreglass RTD Pt100 Cable

Miniature Thermocouple Connectors
Mini Thermocouple Connectors – 220ºC Rated
Mini Thermocouple Connectors – 350ºC Rated
Mini Thermocouple Connectors – 650ºC Rated
Mini Thermocouple Connector Accessories
Mini Thermocouple Connector Panels
Mini Three Pin Connectors

Standard Thermocouple Connectors
Standard Thermocouple Connectors – 220ºC
Standard Thermocouple Connectors – 350ºC Rated
Standard Thermocouple Connectors – 650ºC Rated
Standard Thermocouple Connector Accessories
Standard Thermocouple Connector Panels
Standard Three Pin Connectors
Instrumentation
Hand Held Indicators
Panel Indicators
Temperature Transmitters
Temperature Controllers
Temperature Programmers
Temperature Calibrators
Chart Recorders
Multi Channel Indicator
DIN Rail Mounted Transmitters
Head Mounted Transmitters
ATEX/IECEx Rated Transmitters
Dry Block Calibrator
Temperature Dataloggers

Temperature Accessories
Compression Fittings
Pressure and Vacuum Feedthroughs
ATEX/IECEx Compression Fittings

Calibration
UKAS Calibration Services

Pressure
Pressure Gauges
Pressure Transmitters


© 1998- TC Ltd., P.O. Box 130, UXBRIDGE, UB8 2YS, United Kingdom
Tel.: 01895 252222, Email: info@tc.co.uk
© 1998- TC Ltd., P.O. Box 130, UXBRIDGE, UB8 2YS, United Kingdom
Tel.: 01895252222, Email: info@tc.co.uk



1 Thermocouple Type Temperature Range (continuous) Temperature Range
(short term)
N Nicrosil vs Nisil 0°C to +1200°C -270°C to +1300°C
K Nickel Chromium vs
Nickel Aluminium
0°C to +1100°C -180°C to +1350°C
T Copper vs Constantan -185°C to +300°C -250°C to +400°C
J Iron vs Constantan +50°C to +700°C -180°C to +750°C
Temperature ranges refer to the thermocouple type.
The temperature range of the sensor may deviate from the above,
please refer to the product description for more details
2 Sheath Material Max.
Temperature
600 Inconel 600 1100°C
114 Nicrotherm DTM 1250°C
310 310 Stainless Steel 1100°C
321

321 Stainless Steel

800°C

INSULATED
Hot junction insulated from sheath. Gives floating output with typical insulation resistance in excess of 100 megohms
