Bi Metallic Thermometers

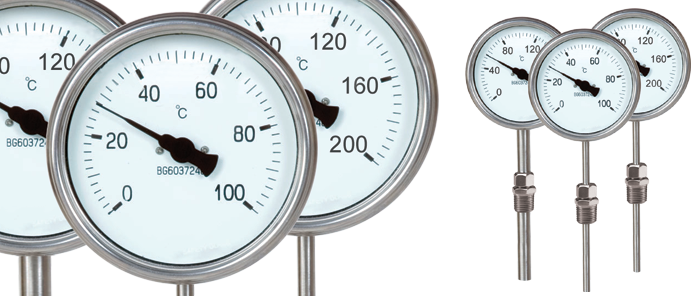

Bi Metallic Dial Thermometer

Our range of Bi-Metallic thermometers are designed for process and petrochemical applications. Standard features include, fast, accurate and repeatable readings, user calibration, all stainless steel construction and are available with bottom or back entry.
  • Size: 100mm (4”)
  • Stem Diameter: 6.0mm & 12.7mm in 316L Stainless Steel
  • Stem Length: 200mm under dial
  • Case & Bezel: 304 Stainless steel
  • Window: Toughened Glass
  • Pointer: Black Anodised Aluminium
  • Dial: White anodised aluminium with black markings
  • Fitting: Thermometers supplied with a 1/2” BSP compression fitting (other threads are available on request)
  • Accuracy: As Per Cl.1 EN13190:2001

Enquiry Form

This Bi Metallic Dial Thermometer is available to buy online. However, if you have a particular application that you require advice on or a question relating to this product, please use the form below to contact us. Alternatively please email us with your requirements or call one of our experienced engineers on 01895 252222.
