Mountable Infrared Thermometer

Infrared Thermometers

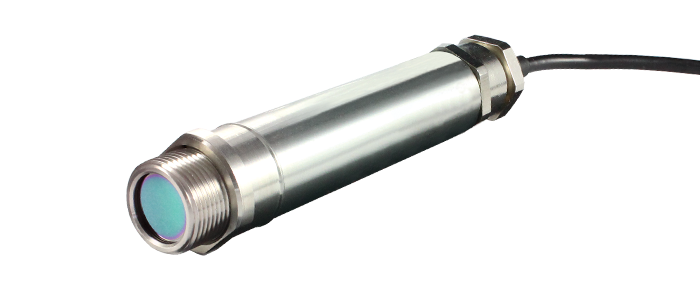

This infrared thermometer is ideal for a wide variety of applications where contact temperature measurement is not possible. Offered with either 2:1, 15:1 or 30:1 optical resolution depending on model, they are supplied with a 2 wire 4-20mA output over a range of 0 to 250°C. The sensor is compatible with any instrumentation which has a 4-20mA input. Both models are available with a water cooled jacket and air purge collar. Alternatively the air purge collar is available separately. An adjustable mounting bracket is also available.
  • Temperature range: 0°C to 250°C
  • Output: 4-20mA
  • Accuracy: ±1%
  • Response time: 240mSec (90% response)
  • Repeatability: 0.5%
  • Resolution (Temperature): 0.25%
  • Emissivity: 0.95 (fixed)
  • Optical Resolution: Either 2:1, 15:1 or 30:1 depending on model selected
  • Power supply required: 24 V DC to drive loop
  • Dimensions: 18mm diameter x 103mm long stainless steel housing
  • Available with optional water cooled jacket and air purge collar
  • Rated to IP65
  • Thread mounting: M16x1mm
  • Supplied complete with 1 metre of cable

Mountable Infrared Thermometer Enquiry Form

This infrared thermometer is available to buy online. However, if you have a particular application that you require advice on or a question relating to this product, please use the form below to contact us. Alternatively please email us with your requirements or call one of our experienced engineers on 01895 252222.
