Other Popular Resistance Thermometers - Pt100 Sensors

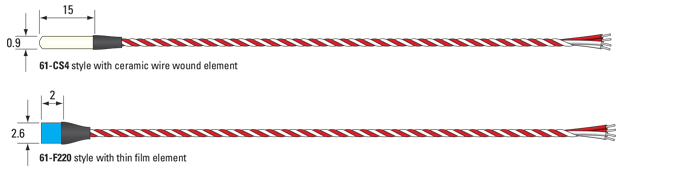

Basic Style RTD's (Type 61)

Available in Class B, A, 1/3, 1/5 or 1/10 DIN accuracies, these simple Pt100 assemblies comprise either a thin film or a ceramic wire wound element welded to insulated wires in a 4-wire configuration. Maximum operating temperature 250ºC.

Enquiry Form

1. Element Style


2. No. of Elements and Ro Value


Number of Elements Select
Simplex (1 element)
Duplex (2 elements)
Triplex (3 elements)

Resistance value at 0ºC:

3. Tolerance of Element


  Tolerance of Element
(IEC 60751 for Pt100)
Select
Grade Accuracy
@ 0ºC
Accuracy
@ 100ºC

B ±0.30°C ±0.80°C
A ±0.15°C ±0.35°C
1/3 ±0.10°C ±0.27°C
1/5 ±0.06°C ±0.16°C
1/10 ±0.03°C ±0.08°C
Note: 130Ω elements are only
available in Grade B, Thin Film elements available in Grade A or B only.

4. Wiring Configuration


  Wiring Configuration
(IEC 60751:2008)
Select
2 2 wire
3 3 wire (most popular)
4 4 wire
4BL 4 wire blind loop

5. Cable Length


 mtrs*

6. Quantity Required


Contact Details


Company Name


Your Name


Title/Dept.


Email


Telephone


Additional Information


If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below



Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products.


Ceramic elements are smaller and are available in better accuracies but are fragile, Thin Film elements are more rugged but are limited to class A and B accuracies
Note: Some wiring and number of element configurations may not be available in all diameters

Assemblies with pot seals are supplied with short tails as shown. However, where leads are several metres or more long, it is more suitable to have an overall sheathed cable. We recommend the following cables, which are 7/0.2mm and overall sheathed constructions. Other cables are available, please contact us for details.
