Multipair Thermocouple Cables

Armoured XLPE Insulated

  • These cables meet the requirements of BS4066 Part 3/IEC 60332.3 Category A covering tests on cables under fire conditions and are ideal for situations where there is a risk of fire and the emission of smoke and gases could threaten life and property
  • The sheathing materials used are Halogen free
  • The acidic gas which is evolved during combustion is less than 0.5% in accordance with BS6425 Pt 1 and IEC 60754 Pt 1
  • The Oxygen Index Value is not less than 30 in accordance with BS2782:2007 Part 1 Method 141
Armoured XLPE Multipair

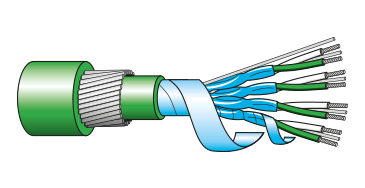

Multipairs of stranded 16/0.2mm dia conductors XLPE insulated. Pairs numbered, twisted and individually screened with Mylar® aluminium tape with a drainwire. Pairs laid up, overall screened with Mylar® aluminium tape with a drainwire. XLPE bedded. Steel wire armoured and XLPE sheathed.

Stock Number M4502/
SWA
M4504/
SWA
M4506/
SWA
M4508/
SWA
M4512/
SWA
M4516/
SWA
M4520/
SWA
M4524/
SWA
M4536/
SWA
Number of Strands   16 16 16 16 16 16 16 16 16
Size of Strand Diameter (mm)   .2 .2 .2 .2 .2 .2 .2 .2 .2
Total Area (mm2)   .5 .5 .5 .5 .5 .5 .5 .5 .5
Approx. Gauge SWG   36 36 36 36 36 36 36

36

36
AWG   32 32 32 32 32 32 32 32 32
Insulation   XLPE
Number of Pairs   2 4 6 8 12 16 20 24 36
Laid Flat or Twisted   Twisted
Screen   Yes - Individually Screened Pairs
Insulation   LSF
Insulation
Rating (ºC)
Continuous   -30 to +75
Short Term
Colour Coding   Yes
Physical
Properties
Abrasion Resistance   Good
Moisture Resistance   Very Good
Typical Weight (Kg/100m)
excl reel
  35 55 68 84 112 145 168 207 265
Diameter under Armour (mm)   10.5 12.5 15.2 16.1 20.4 22.8 24.9 28.4 33.2
Diameter over Armour (mm)   11.9 15.0 17.7 19.3 23.6 26.0 28.1 32.4 37.2
Overall Diameter   14.7 18.0 20.9 22.5 27.2 29.6 31.9 36.4 41.4
Recommended Cable Gland Ref.   20S 20 25 25 32 32 32 40 50S
Popular Order Codes

M4502KX/SWA, M4502KCB/SWA, M4502JX/SWA

M4504KX/SWA, M4504KCB/SWA, M4504JX/SWA

M4506KX/SWA, M4506KCB/SWA, M4506JX/SWA, M4506NX/SWA

M4508KCB/SWA

M4512KX/SWA, M4512KCB/SWA, M4512TX/SWA

M4516NX/SWA

M4520KX/SWA, M4520KCB/SWA

M4524NX/SWA

Notes



All dimensions are approximate
Excellent for fire risk areas. Free of halogens. Individually and collectively screened. Armoured for mechanical strength.
