Mineral Insulated Thermocouples

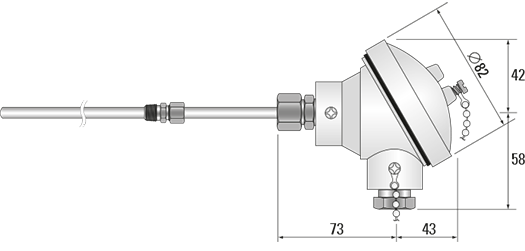

with 316 Stainless Steel head

  • High integrity construction suited to arduous operating conditions at temperatures from -200ºC to +1400ºC (dependent on sheath material and thermocouple type)
  • Custom built to your specification and terminated in a weatherproof 316 Stainless Steel, screw top terminal head with the tube entry and cable entry at a right angle to each other, with a ceramic terminal block. Suitable for simplex and duplex assemblies. Supplied with a 20mm x 1.5mm ISO metal pinch gland on the cable entry for cables from 6mm to 14mm diameter
  • Alternatively, we have a large range of sensors available to buy online in various diameters and lengths
  • High accuracy and stability maintained throughout the operating life of the sensor
  • Fast response and high insulation resistance
  • Available in thermocouple types K, T, J, N, E, R, S, B, C & D with sheath diameters from 4.5mm to 8.0mm and lengths from a few millimetres to 200 metres or more dependent on the sheath diameter selected

Enquiry Form

1. Thermocouple Type


2. Sheath Material


3. Sheath Diameter


4. Sheath Length


 mm

5. Types of Sensing Junction


Illustration Select
INSULATED Junction
GROUNDED Junction
EXPOSED Junction
Duplex Element Required? (please tick box)
Triplex Element Required? (please tick box)

6. Optional Compression Fitting


7. Optional 4 to 20mA Transmitter


8. Quantity Required


Contact Details


Company Name


Your Name


Title/Dept.


Email


Telephone


Additional Information


If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below



Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products.

1 Thermocouple Type Temperature Range (continuous) Temperature Range
(short term)
K Nickel Chromium vs
Nickel Aluminium
0°C to +1100°C -180°C to +1350°C
T Copper vs Constantan -185°C to +300°C -250°C to +400°C
J Iron vs Constantan +20°C to +700°C -180°C to +750°C
N Nicrosil vs Nisil 0°C to +1100°C -270°C to +1300°C
E Nickel Chromium vs Constantan 0°C to +800°C -40°C to +900°C
R Platinum - 13% Rhodium vs
Platinum
0°C to +1600°C -50°C to +1700°C
S Platinum - 10% Rhodium vs
Platinum
0°C to +1550°C -50°C to +1750°C
B Platinum - 30% Rhodium vs
Platinum 6% Rhodium
+100°C to +1600°C +100°C to +1820°C
Temperature ranges refer to the thermocouple type.
The temperature range of the sensor may deviate from the above,
please refer to the product description for more details
2 Sheath Material Max.
Temperature
Standard Sheath Materials
321

321 Stainless Steel

800°C
310 310 Stainless Steel 1100°C
600 Inconel 600 1100°C
Specialized Sheath Materials
601 Inconel 601 1175°C
800 Incoloy 800 1100°C
825 Incoloy 825 1100°C
114 Nicrobell D 1250°C
446 AISI 446 1150°C
156 Hastelloy X 1220°C
276 Hastelloy 276 1100°C
160 Haynes 160 1200°C
P10R Platinum 10% Rhodium 1400°C
* 5.5mm and 10.8mm diameters are a thick wall heavy duty construction

INSULATED
Hot junction insulated from sheath. Gives floating output with typical insulation resistance in excess of 100 megohms

GROUNDED
Hot junction welded to sheath tip giving earthed output and faster response to temperature changes

EXPOSED
Fastest response mainly for the measurement of air temperature in ducts. Restricted to a maximum operating temperature of 300ºC
