Threaded Thermowells

Thermowells - Solid or Welded Construction

  • Ideal for when an application demands the removal of a sensor without interrupting the process
  • Our thermowells can either be of welded construction with a parallel sheath or machined from solid with a parallel or tapered sheath
  • Available in a variety of constructions with either screwed BSP or NPT male process entry. Other threads are available upon request
  • Custom built in a wide range of sheath materials to meet customer requirements on a prompt delivery
  • Testing and Certification services include:
    ASME PTC 19.3 TW-2010 (wake frequency calculation), pressure testing, MTC’s, X-Ray, dye penetration, full penetration weld and NACE MR0175 (hardness test)
  • Click here for a short animation explaining how these thermowell products are used with other products.

Thermowell Enquiry Form

1. Thermowell Style

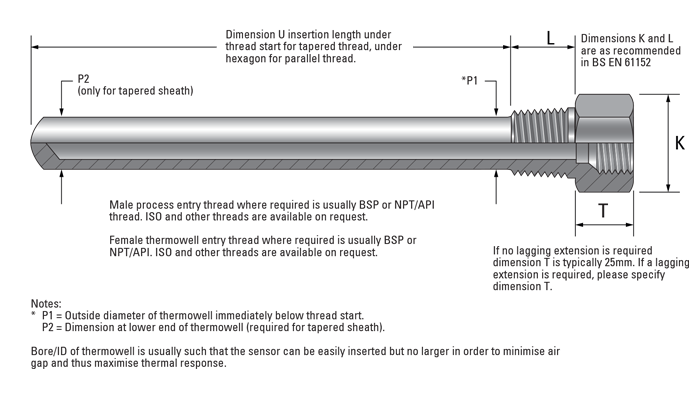

Illustration Select
WH
Welded fabrication Thermowell
with male and female threaded connections. Parallel sheath.
SH
Machined from solid Thermowell
with male and female threaded connections.
Tapered or Parallel sheath.
SW
Socket Weld style. Machined from solid thermowell, designed to work with socket weld fittings. Tapered, parallel or stepped sheath.
2. Sheath Material
3a. Process Entry Thread


3b. Sensor Entry Thread


4a. Outer Diameter ('P1')


4b. Bore Diameter


5. Insertion Length 'U'

 mm
6. Sheath Options

Illustration Select
Parallel
Tapered
Stepped
7. Taper Details ('P2')


8. Quantity Required

Contact Details

Company Name


Your Name


Title/Dept.


Email


Telephone


Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below



Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.
