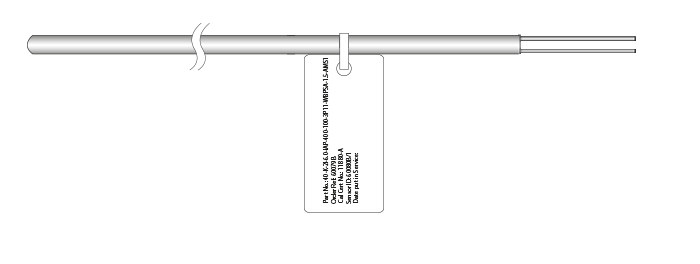

Heat Treatment Thermocouple with Basic Seal

AMS2750 Approved Thermocouples for Heat Treatment

Related Products

Compression Fittings
Calibrated Mineral Insulated Thermocouples
Our range of AMS2750 NADCAP, BAC5621 or CQI-9 compliant mineral insulated thermocouples are designed to meet the high quality and accuracies demanded for heat treatment applications within the Aerospace industry. Through careful material selection and a comprehensive calibration program in our ISO17025 UKAS accredited laboratory, we can offer a wide range of sheath diameters and materials from stock with quick manufacture times. Their semi rigid construction allows them to be bent and formed to suit particular applications without impairing performance.
  • Calibrated in line with AMS 2750 NADCAP, BAC5621 or
    CQI-9 requirements
  • Suitable for use in Temperature Uniformity Surveys (TUS), System Accuracy Tests (SAT), Control Recording and Monitoring and Load sensors
  • Batch calibration certificate supplied as standard
  • Sensors are individually tagged and numbered for full traceability
  • Available in thermocouple types N, K, T and J
  • Wide range of sheath diameters and materials
Calibration Accuracies:

Code Standard Accuracy Supplied Permitted Applications Certification
AMS1 AMS2750 ±1.1ºC or 0.4% of reading (whichever is greater), end to end deviation of material batch no greater than 1.1ºC Temperature Uniformity Survey (TUS)
System Accuracy Test (SAT)
Control, Monitoring & Recording (Class 1 & 2)
An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details section for a detailed explanation).
Please note: UKAS calibration is available on request.
BAC2 BAC5621 ±1.1ºC <538ºC or 0.4% of reading >538ºC, end to end deviation of material batch no greater than 0.6ºC Secondary/Field Test Sensor
CQI1 CQI-9 ±1.1ºC or 0.4% of reading (whichever is greater), end to end deviation of material batch no greater than 1.1ºC Temperature Uniformity Survey (TUS)
System Accuracy Test (SAT)
Control, Monitoring & Recording (Class 1 & 2)
Load



Heat Treatment Thermocouple Enquiry Form

1. Thermocouple Type
2. Sheath Material
3. Sheath Diameter

4. Sheath Length

 mm
5. Types of Sensing Junction

Illustration Select
INSULATED Junction
Duplex Element Required? (please tick box)
6. Tagging Options

Illustration Select
Plastic ID Label
For use with all end seals up to 70ºC
Laser Etching on Sensor
Laser etch of serial number. This can be instead of or in addition to either of the options above
7. Calibration Accuracies

Calibration Type Select
AMS1 - AMS2750
BAC2 - BAC5621
CQI1 - CQI-9
Your chosen calibration is:

AMS1- AMS2750
Accuracy:
±1.1ºC or 0.4% of reading (whichever is greater), end to end deviation of material batch no greater than 1.1ºC
Permitted Applications:
Temperature Uniformity Survey (TUS)
System Accuracy Test (SAT)
Control, Monitoring & Recording (Class 1 & 2)
An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details section for a detailed explanation). Please note: UKAS calibration is available on request.
Your chosen calibration is:

AMS-2 - AMS2750
Accuracy:
±2.2ºC or 0.75% of reading (whichever is greater), end to end deviation of material batch no greater than 1.1ºC
Permitted Applications:
Temperature Uniformity Survey (TUS)
Control, Monitoring & Recording (Class 3,4,5,6)
Load
An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details section for a detailed explanation). Please note: UKAS calibration is available on request.
Your chosen calibration is:

BAC2 - BAC5621
Accuracy:
±1.1ºC <538ºC or 0.4% of reading >538ºC, end to end deviation of material batch no greater than 0.6ºC
Permitted Applications:
Secondary/Field Test Sensor
An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details section for a detailed explanation). Please note: UKAS calibration is available on request.
Your chosen calibration is:

CQI1 - CQI-9
Accuracy:
±1.1ºC or 0.4% of reading (whichever is greater), end to end deviation of material batch no greater than 1.1ºC
Permitted Applications:
Temperature Uniformity Survey (TUS)
System Accuracy Test (SAT)
Control, Monitoring & Recording (Class 1 & 2)
Load
An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details section for a detailed explanation). Please note: UKAS calibration is available on request.
8. Calibration Standard
9. Report Type

Details Select
Standard 3 Page Report
An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details page for a detailed explanation)
Custom Report
As the Standard Report but with your choice of range and interval
Your chosen Report Type is:

An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details page for a detailed explanation).
Your chosen Report Type is:

A Custom Report
Please enter the calibration range:
Please enter the calibration interval:
10. Quantity Required

Contact Details

Company Name


Your Name


Title/Dept.


Email


Telephone


Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below



Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.
