Pressure Transmitters

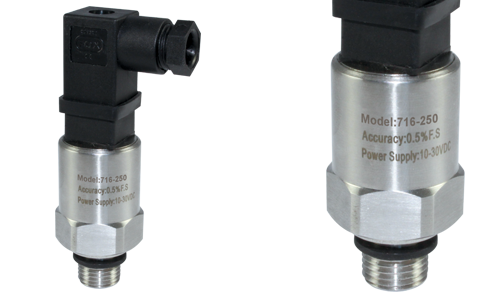

Industrial Pressure and Vacuum Transmitter

These 4~20mA pressure transmitters offer high accuracy and stability for use in a wide range of measurement applications including gas and liquids and for use with air conditioning equipment, auto engines and air compressors amongst others. The electronics are encapsulated inside a 316L stainless steel housing along with a ceramic sensing element, making these transmitters ideal for use in industrial and arduous environments. The thermal stability of ceramic is very high, so thermal shift is minimal during operation. Threaded 1/4 inch BSPP for insertion into the application.
  • Operating temperature: -40 to +100ºC
  • Output: 4~20mA current signal
  • Accuracy: +/-0.5% FS
  • Stability: +/-0.5% FS, maximum 1% FS
  • Response time: 10ms
  • Over pressure limit: 1.5 x rated value
  • Power supply: 10-30V DC
  • Electrical connection: via fitted DIN 43650 C connector
  • IP67 rated

Pressure and Vacuum Transmitter Enquiry Form

This pressure gauge is available to buy online. However, if you have a particular application that you require advice on or a question relating to this product, please use the form below to contact us. Alternatively please email us with your requirements or call one of our experienced engineers on 01895 252222.
