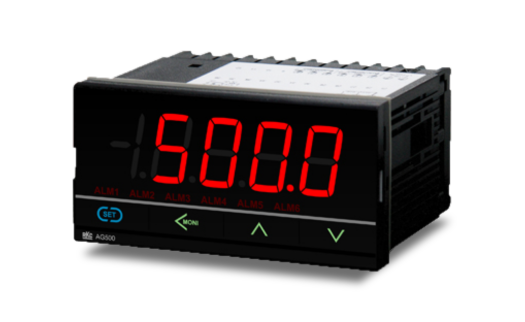

Panel Temperature Indicator with 6 Alarms
Panel Temperature Indicator
Request a Quote
Buy Online from TC Direct
TC Ltd - Trusted by manufacturers, OEMs and research labs in the UK and Worldwide for over 50 years.
Inputs
The AG500 has a universal input and can be configured by the user for thermocouple, resistance thermometer as well as voltage or current inputs.
Alarms
The AG500 can have up to six low cost process alarms which can be specified and configured by the user. In addition, alarm interlocking (latching), alarm energisation and alarm delay time may be easily programmed for each alarm output. Optional external input contacts allow a latched alarm to be remotely reset.
Process Value Bias
This option allows the measured object temperature to be offset on the display to compensate for errors due to difficulties in correct placement of the sensor.
Data Security
Non volatile memory and set data lock prevents loss or inadvertent change of data due to power failure or incorrect operation.
Analogue Output Option
A range of isolated DC voltage and current outputs which can be configured by the user.
The AG500 has a universal input and can be configured by the user for thermocouple, resistance thermometer as well as voltage or current inputs.
Alarms
The AG500 can have up to six low cost process alarms which can be specified and configured by the user. In addition, alarm interlocking (latching), alarm energisation and alarm delay time may be easily programmed for each alarm output. Optional external input contacts allow a latched alarm to be remotely reset.
Process Value Bias
This option allows the measured object temperature to be offset on the display to compensate for errors due to difficulties in correct placement of the sensor.
Data Security
Non volatile memory and set data lock prevents loss or inadvertent change of data due to power failure or incorrect operation.
Analogue Output Option
A range of isolated DC voltage and current outputs which can be configured by the user.
Maximum and Minimum Process Value Memory
The AG500 stores the highest and the lowest process values which can be easily viewed using the front panel operating keys. The optional digital contact input enables the stored values to be remotely reset.
Contact Inputs
A two point volt free contact input may be specified for the AG500 for Max and Min memory reset and Interlocked Alarm Reset..
Communication
RS485/422A communication allows this indicators to be connected to PCs and PLCs. With this feature up to 32 instruments can be connected to a single communication port.
Power Supply
This option for the AG500 to provide either a 12V DC power supply to power the channel identification LED display on the matching SP400/SP500 switch boxes or sensor power supply, or to provide a 24V DC for sensor loop power.
Optional Front Plastic Cover
An optional front plastic cover is available which protects the instrument face.
Supply
A choice of 100 to 240V AC or 24V AC/DC supplies is available.
The AG500 stores the highest and the lowest process values which can be easily viewed using the front panel operating keys. The optional digital contact input enables the stored values to be remotely reset.
Contact Inputs
A two point volt free contact input may be specified for the AG500 for Max and Min memory reset and Interlocked Alarm Reset..
Communication
RS485/422A communication allows this indicators to be connected to PCs and PLCs. With this feature up to 32 instruments can be connected to a single communication port.
Power Supply
This option for the AG500 to provide either a 12V DC power supply to power the channel identification LED display on the matching SP400/SP500 switch boxes or sensor power supply, or to provide a 24V DC for sensor loop power.
Optional Front Plastic Cover
An optional front plastic cover is available which protects the instrument face.
Supply
A choice of 100 to 240V AC or 24V AC/DC supplies is available.
