Products

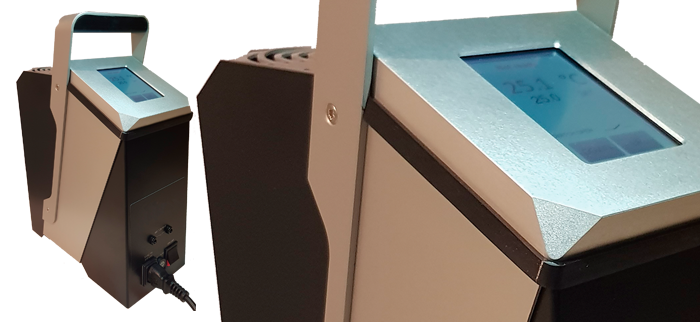

Dry Block Calibrator

Temperature Calibrators

Our dry block calibrators generate true reference temperatures over the range of -40°C to +650°C to facilitate the calibration of temperature sensors and systems. Simply place the sensor to be calibrated in the calibrator and set the desired temperature using the touch screen controller. When stability occurs, read the true temperature from the calibrator and recalibrate the system or sensor accordingly. All types of sensors can be calibrated as well as complete temperature loops. Each instrument is itself calibrated and supplied with a calibration certificate to National Standards. Each unit is also supplied with two inserts, a manual and a test cable for thermostat. An optional carrying/storage case is also available.
  • Ranges:
    -40°C (off ambient) to 150°C or
    +30°C to 650°C depending on model selected
  • Accuracy:
    985-651 ±1.5°C
    985-652 ±0.3°C
  • Stability:
    985-651 ±0.1°C
    985-652 ±0.05ºC
  • Resolution: 0.1ºC
  • Easy to use Touch Screen Display
  • USB interface
  • No liquids, safe dry calibration
  • Immersion well:
    985-651, 26mm diameter x 155mm depth
    985-652, 19mm diameter x 110mm depth
  • Supplied with two inserts for the well:
    985-651, one undrilled and one 6.5mm
    985-652, one 3.5mm and one 6.5mm
  • Ambient operating range: 0 to 40°C
  • Supplied complete with a test cable for thermostat and calibration certificate
  • Optional carrying/storage case available
  • Dimensions:
    985-651, 117x300x245mm
    985-652, 122x345x240mm
  • Weight: 5.5kgs

Temperature Calibrator Enquiry Form

This calibrator is available to buy online. However, if you have a particular application that you require advice on or a question relating to this product, please use the form below to contact us. Alternatively please email us with your requirements or call one of our experienced engineers on 01895 252222.
