Portable Dry Block Calibrator

Temperature Calibrators

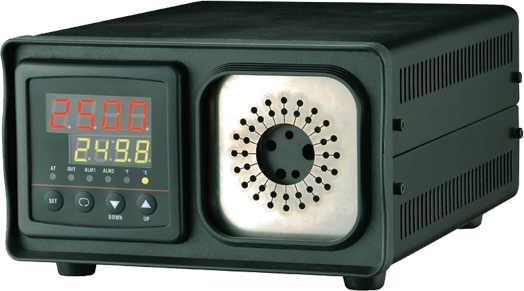

This dry block calibrator is compact and easy to use, making it a suitable unit for use on site without the need for heavy and expensive equipment. The temperature can be set from the panels on the front of the calibrator in 0.1ºC increments up to 300ºC and probes are to be inserted into the corresponding wells. The unit is controlled by a PID controller and an RTD sensor which is housed within the aluminium block, cooling is aided by a fan which allows rapid changes in temperature. The well immersion depths are 90mm and the unit is supplied with an instruction manual, in-house test certificate and power cable.
  • Easy to use, affordable and portable dry block calibrator
  • 5 different wells for a variety of thermocouple diameters (2 x 3.5mm, 4.2mm, 5.0mm & 6.8mm)
  • Range: +33 to +300ºC
  • Resolution: 0.1ºC/ºF
  • Accuracy: ±0.8°C (up to 100°C), ±1.6°F (up to 212°F), ±1.6°C (100 to 200°C), ±3.2°F (212 to 392°F), ±2.8°C (200 to 300°C), ±5.6°F (392 to 572°F)
  • Stability: ±0.1°C (33 to 100°C), ±0.2°F (91.4 to 212°F), ±0.2°C (100 to 200°C), ±0.4°F (212 to 392°F), ±0.4°C (200 to 300°C), ±0.8°F (392 to 572°F)
  • Heating time: 30 minutes to maximum
  • Cooling time: 30 minutes to 100ºC
  • Stabilisation time: 20 minutes maximum after temperature has been set
  • Overload alarm
  • 230V AC
  • Well Depth: 100mm (90mm immersion depth)
  • Size: 113x183x233mm (HxWxD)
  • Weight: 3 kgs
