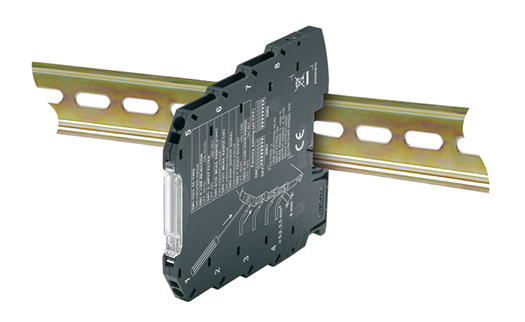

RTD Pt100 Slimline Linearised DIN Rail Transmitter

Temperature Transmitters

Technical Features – Input
Measurement Range : -200 - +650 °C
Resistance Range : 18,5Ω - 330Ω
Minimum span : 20 °C
Current on sensor : 750 μA rated
Cable resistance : Max 25Ω per wire
Connection : 2, 3 or 4 wires
Resolution : ~6 mΩ

Technical Features – Output/Power Supply
Operating Voltage : 5-30V DC
Current output : 4~20mA, 20~4mA (2 wire)
Load resistance : 1 kΩ @ 26 V, 21 mA
Resolution : 1 μA (>14 bits)
Output in case of over-range: 102,5% of full scale value
Output in case of fault : 105% of full scale value
Current output protection : approximately 30mA

EN61000-6-4/2002-10 (electromagnetic emission, industrial surroundings)
EN61000-6-2/2006-10 (electromagnetic immunity, industrial surroundings)
Other Features
Network freq. Rejection : 50 Hz and 60 Hz (settable)
Transmission error : Max of 0,1% (of measurement range) or 0,1 °C
Error caused by EMI (*) : < 0,5%
Influence of cable resistance: 0,005 Ω/Ω
Temperature Coefficient : < 100 ppm, Typical : 30 ppm
Sampling Time : 100 ms (without 50/60 Hz Rejection)
300 ms (with 50/60 Hz Rejection)
Response time (10..90 %) : < 220 ms (without 50/60 Hz Rejection)
< 620 ms (with 50/60 Hz Rejection)
Protection Index : IP20
Operating Conditions : Temperature -20 - +65 °C
Humidity 30 - 90% at 40°C
Altitude: up to 2000 m.a.s.l
Storage Temperature : -40 - +85 °C
Connections : Spring terminals
Conductor Section : 0,2..2,5 mm²
Wire stripping : 8 mm
Box : PBT (black colour)
Dimensions/Weight : 6.2 x 93.1 x 102.5mm / 45g
Mounting : Standard 35mm DIN rail
