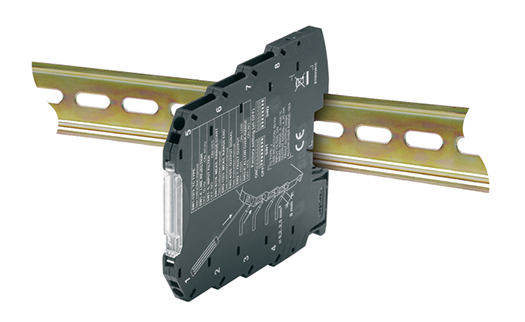

High Precision Thermocouple Slimline DIN Rail Transmitter

Temperature Transmitters

Technical Features – Input
Thermocouple Types : J, K, R, S, T, B, E & N (as per EN60584.1)
Measurement Range : Settable via dip switch (see input & range table)
Minimum Span : 100°C
Impedance : 10MΩ
Test Current : <50 nA
CMRR(1) : >135 dB (refers to power supply side)
DMRR(1)(2) : >40 dB

Technical Features – Output/Power Supply
Operating Voltage : 19.2 - 30V DC
Consumption : Max. 24mA at 24V DC
Current output : 4~20mA, 0-20mA, 20~4mA or
20~0mA. Max. Load resistance 500Ω
Voltage output : 0-5V DC, 1-5V DC & 0-10V DC. Min.
load resistance 2kΩ
Maximun Voltage : Approx. 12.5V
Maximum Current : Approx. 25mA
Resolution : 1mV for voltage output, 2μA for current
Error: mA & 0-5V DC outputs: 350ppm of end of scale
0-10V DC output: 200ppm of end of scale

Standards
EN61000-6-4/2002-10 (electromagnetic emission, industrial surroundings)
EN61000-6-2/2006-10 (electromagnetic immunity, industrial surroundings)
EN61010-1 (safety)
Other Features
ADC : 14 bits
Class/Base Precision : 0.1%
Thermal Drift : 120ppm/K
Response Time (10-90%) : <25ms (without filter)
<55ms (with repeat filter 50Hz)
Cold Junction Error : 1.5°C Max.
Protection Index : IP20
Sensor Fault Detection : Yes
Box : PBT (black colour)
Dimensions/Weight : 6.2 x 93.1 x 102.5mm / 46g
Mounting : Standard 35mm DIN rail
Operating Conditions : Temperature -20 / +65 °C
Humidity 10 - 90% at 40°C
(non-condensing)
Altitude: up to 2000 m.a.s.l
Storage Temperature : -40 - +85 °C
Connections : Spring terminals
Conductor Section : 0,2..2,5 mm²
Wire stripping : 8 mm
Isolation Voltage : 1.5 kV (50 Hz for 1 Min.)
Input and Range Table


Input
Range °C
Mean Error
Min Span
Resolution °C
Standard
Thermocouple
J
-210... 1200
0.025% + 0.29°C
100
0.12
IEC 60584
K
-200... 1372
0.025% + 0.4°C
100
0.17
IEC 60584
R
-50... 1768
0.025% + 1.19°C
100
0.59
IEC 60584
S
-50... 1768
0.025% + 1.34°C
100
0.66
IEC 60584
T
-200... 400
0.025% + 0.31°C
100
0.13
IEC 60584
B
0... 1820
0.025% + 1.87°C
100
0.90
IEC 60584
E
-200... 1000
0.025% + 0.2°C
100
0.92
IEC 60584
N
-200... 1300
0.025% + 0.42°C
100
0.19
IEC 60584
Table of Accuracy (The sum of A+B or C, whichever is greater)

Nominal Value
Over-range
+/- 2.5%
Over-range
+/- 5%
20mA
20.5mA
21mA
4mA
3.5mA
3mA
0mA
0mA
0mA
10V DC 10.25V DC 10.5V DC
5V DC 5.125V DC 5.25V DC
1V DC 0.875V DC 0.75V DC
0V DC 0V DC 0V DC
