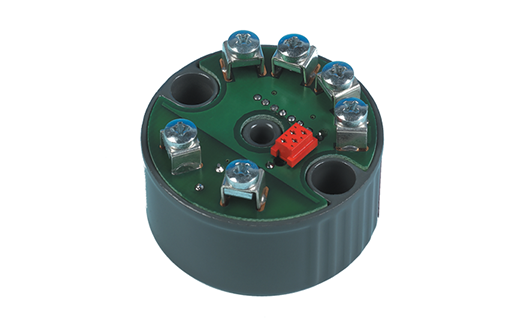

HART Protocol Thermocouple and RTD Transmitter - Head Mounting

Temperature Transmitters

Technical Features – Input
Input RTD : Pt100, Pt500, Pt1000, Ni100, Ni500, Ni1000, Cu10 and Cu100
Input T/C : K, J, L, T, U, E, R, S, B, C, D, N
Input : V
Input : Ohm
Minimum Span See table below

Technical Features – Output/Power Supply
Output : 4..20 mA or 20..4 mA
Linearization : On / Off
Supply : 10..40 VDC, Polarity Protected
Supply Effect : 0.001%/V
Other Features
Max. Ripple :10 V PP. Min Vbat=10 VDC
Zero Drift : ± 0.01%/°C or ±0.02°C/°C
Span Drift : ± 0.005%/°C or ±0.01°C/°C
Long Term Drift : ± 0.05%/Year
Cold Junction Drift : ± 0.01°C/°C
Excitation Current, RTD : 0.1 mA
Sensor Lead Resistance, RTD : 500 Ohm max.
Sensor Lead Resistance Effect : 0.001°C/Ohm
Sensor Lead Resistance, T/C : 10,000 Ohm max.
Open Circuit Detection : Upscale / Downscale
Load Capability : Vbat-10V / 20 mA
Startup Time : 20 sec.
Warmup Time : 5 Min.
Isolation : 500 VDC
Ambient Operating Temp. : -40...+ 85°C.
Storage Temperature : -40...+100°C.
Housing Material : Zinc Alloy (ZAMAK 5) epoxy coated
Housing Dimension : 43mm Dia. x 27mm H.
Input and Range Table


Input
Range °C
Min Span °C
Thermocouple
K
-200... 1370 50
J
-150... 1200 50
L
-150... 900 50
T
-200... 400 50
U
-100... 600 50
E
-270... 1000 50
S
0... 1765 250
R
0... 1765 250
B 0... 1820 600
C 0... 2300 150
D 0... 2300 150
N 0... 1300 50

RTD Pt100 -200... 850
25
Pt500 -200... 850 25
Pt1000 -200... 850 25
Ni100 -60... 250 25
Ni500 -60... 250 25
Ni1000 -60... 250 25
Cu10 -200... 250 25
Cu100 -200... 250 25
mV 0... 1000 10
Ohm 0... 10000
100
