Multipair Thermocouple Cables
Fibreglass Insulated
|
 |
|||||||
| Fibreglass Multipair

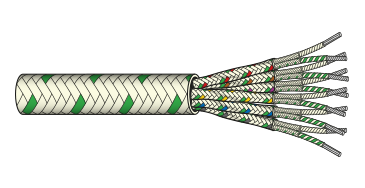

Multipairs of stranded 14/0.2mm dia conductors double glass fibre lapped, braided and varnished. Pairs twisted, glass fibre braided and varnished, bunched, braided and varnished overall. |
||||||||
| Stock Number | CM1402 | CM1403 | CM1406 | CM1412 | ||||
 |
Number of Strands | 14 | 14 | 14 | 14 | |||
| Size of Strand | Diameter (mm) | .2 | .2 | .2 | .2 | |||
| Total Area (mm2) | .44 | .44 | .44 | .44 | ||||
| Approx. Gauge | SWG | 36 | 36 | 36 | 36 | |||
| AWG | 32 | 32 | 32 | 32 | ||||
| Insulation | Fibreglass | |||||||
 |
Number of Pairs | 2 | 3 | 6 | 12 | |||
| Laid Flat or Twisted | Twisted | |||||||
| Screen | No | |||||||
 |
Insulation | Fibreglass | ||||||
| Insulation Rating (ºC) |
Continuous | +480 | ||||||
| Short Term | +540 | |||||||
| Colour Coding | Yes | |||||||
| Physical Properties |
Abrasion Resistance | Fair | ||||||
| Moisture Resistance | None | |||||||
| Typical Weight (Kg/100m) excl reel |
6 | 9 | 14 | 22 | ||||
| Diameter under Armour (mm) | — | |||||||
| Diameter over Armour (mm) | — | |||||||
| Overall Diameter | 4 | 6 | 9 | 14 | ||||
| Popular Order Codes | CM1402KX, CM1402JX, CM1402RCA CM1403KX, CM1403RCA CM1406KX CM1412KX, CM1412JX, CM1412NX |
|||||||
| Notes All dimensions are approximate |
Impregnation retained up to 180°C. Above this temperature the integrity of the cable is maintained to the upper insulation rating limit provided the cable is not flexed particularly when cold. | |||||||
