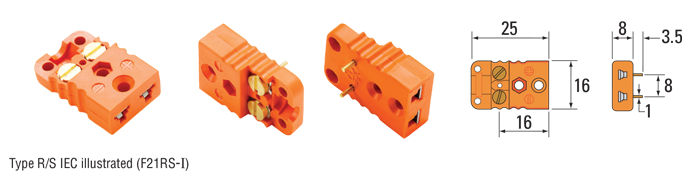

Miniature PCB Thermocouple Socket - Bottom Mounting - F21
Miniature Thermocouple Connectors rated to 220ºC
| IEC Colours | ANSI Colours | ||||
|---|---|---|---|---|---|
| Part No. | Type | Colour | Part No. | Type | Colour |
| F21K-I | K |  |
F21K-A | K |
|
| F21T-I | T |
| F21T-A | T |
|
| F21J-I | J |
| F21J-A | J |
|
| F21N-I | N |
| F21N-A | N |
|
| F21RS-I | R/S |
| F21RS-A | R/S |
|
| F21E-I | E |
| F21E-A | E |
|
| F21B-I | B |
| F21B-A | B |
|
| F21CU | Cu |
| F21CU | Cu |
|
- Designed to be soldered directly onto printed circuit boards - Bottom Mounting
- Thermoplastic body rated to 220ºC
- Available for thermocouple types: K, T, J, N, R/S, E, B and Cu
- Body colour coded and thermocouple type indicated on body
- Polarised flat pins
- Accepts stranded or solid wires up to 0.8mm diameter (0.5mm²)
- Manufactured in accordance with standard EN 50212
Related Thermocouple Connectors
MiniaturePlug
Part Code: F11
Miniature PCB Socket - Rear Mounted
Part Code: F23
Miniature PCB Socket - Side Mounting
Part Code: F38
Frequently Asked Questions
- What are thermocouple connectors, and why are they important?
Thermocouple connectors are used to connect thermocouples to measurement devices or other equipment. They provide a reliable connection for transmitting the temperature signal from the sensor while ensuring accurate and consistent readings. The choice of connector material and temperature rating is crucial to ensure that the connector performs well in various environments, especially at high temperatures. - What are the different temperature ratings available for your thermocouple connectors?
We offer thermocouple connectors in three temperature ratings: 220ºC, 350ºC, and 650ºC. The temperature rating you need will depend on the maximum temperature the connector reaches. For most applications, the 220ºC rated connector is suitable, while for more demanding applications with higher ambient temperatures, the 350ºC or even 650ºC ceramic connectors are better suited. - Do you offer accessories for thermocouple connectors?
Yes, we offer a wide range of accessories for thermocouple connectors, including sensor and cable supports and adaptors, mounting brackets and protective covers. These accessories are designed to enhance the functionality and reliability of our thermocouple connectors, ensuring ease of installation and long-lasting performance. If you need specific recommendations, feel free to contact our engineers for assistance. - What is a thermocouple connector panel?
A thermocouple connector panel is a centralised unit designed to house multiple thermocouple connectors, allowing for organised and efficient connection of multiple thermocouple sensors to measurement equipment. It streamlines the wiring process and ensures secure, reliable connections in applications requiring multiple thermocouples. Available in both aluminium and stainless steel, these panels come in various configurations and capacities to suit different needs.
