F79 Miniature Panel Blanking Thermocouple Socket

Miniature Thermocouple Connectors rated to 220ºC

When using a connector panel with less connectors than available slots, these blanking sockets are perfect to avoid having an empty space in your panel. The blanking sockets are made from the same material as other connectors manufactured by the TC Group and are colour coded to IEC 60584-3 : 2007, complete with a bracket for attachment to the panel.
  • Body: Thermoplastic compound rated -50°C to +220°C
  • Colour coded to IEC 60584-3 : 2007 Type K - Green, Type T - Brown, Type J - Black, Type N - Pink, Type RCB/SCB - Orange and Copper - White
  • Dimensions:

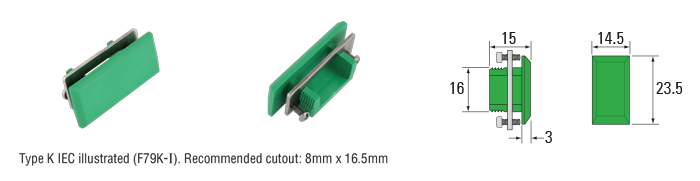

    14.5x16x8mm (LxWxD) with front bezel 23.5x14mm supplied with bracket for attachment to panel
