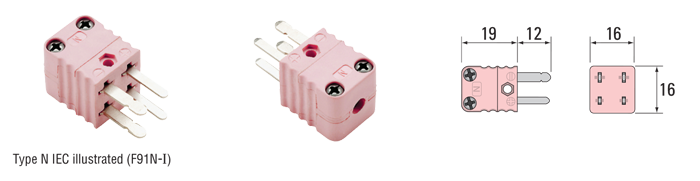

Miniature Thermocouple Plug - Duplex - F91

Miniature Thermocouple Connectors rated to 220ºC

IEC Colours ANSI Colours
Part No. Type Colour Part No. Type Colour
F91K-I K F91K-A K
F91T-I T F91T-A T
F91J-I J F91J-A J
F91N-I N F91N-A N
F91RS-I R/S F91RS-A R/S
F91E-I E F91E-A E
F91B-I B F91B-A B
F91CU Cu F91CU Cu
  • Thermoplastic body rated to 220ºC
  • Available for thermocouple types: K, T, J, N, R/S, E, B and Cu
  • Body colour coded and thermocouple type indicated on body
  • Easy wiring via lipped washer
  • Accepts stranded or solid wires up to 0.8mm diameter (0.5mm²)
  • Manufactured in accordance with standard EN 50212
  • High purity thermocouple alloys used for male pin and female socket constructions
  • Bevel tipped pins for easy insertion
  • Polarised flat pins

Related Thermocouple Connectors

Miniature Socket
Duplex
Part Code: F92

Connector Enquiry Form

F91 Thermocouple Type
Colour Code

Quantity Required

Contact Details

Company Name


Your Name


Title/Dept.


Email


Telephone


Additional Information

If your enquiry is for more than one style of connector, please email us with your requirements or use the box below



Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.
