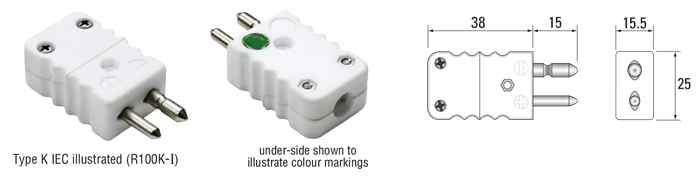

Standard Ceramic Thermocouple Plug - R100

Standard Thermocouple Connectors rated to 650ºC

Send Enquiry Buy Online Request Info Connector Catalogue

IEC Colours			ANSI Colours
Part No.	Type	Colour	Part No.	Type	Colour
R100K-I	K		R100K-A	K
R100T-I	T		R100T-A	T
R100J-I	J		R100J-A	J
R100N-I	N		R100N-A	N
R100RS-I	R/S		R100RS-A	R/S
R100E-I	E		R100E-A	E
R100B-I	B		R100B-A	B
R100CU	Cu		R100CU	Cu

Ceramic body rated to 650ºC
Available for thermocouple types: K, T, J, N, R/S, E, B and Cu
Thermocouple type indicated by colour coded dot on body
Easy wiring via lipped washer
Accepts stranded or solid wires up to 0.2mm to 1.29mm diameter (0.03mm² to 1.3mm²). With washer removed: up to 1.63mm diameter (2.1mm²).

Manufactured in accordance with standard EN 50212
High purity thermocouple alloys used for male pin and female socket constructions
Polarised round pins with mechanism to prevent accidental output
Single captive screw for quick assembly
