R89 Internal Crimp/Braze Adaptor

Accessories for Standard Connectors

Application
This adaptor can be crimped onto a mineral insulated cable or metal tube so it may then be attached to a standard connector.
A crimp tool is available.
Stainless steel adaptors may also be brazed. Brass adaptors can also be used to crimp some soft materials such as PVC or PFA wires and cables.
Construction
For 220°C and 350°C range connectors: Nickel Plated Brass, Brass or Stainless Steel.
For Ceramic connectors: Stainless Steel only.

Notes

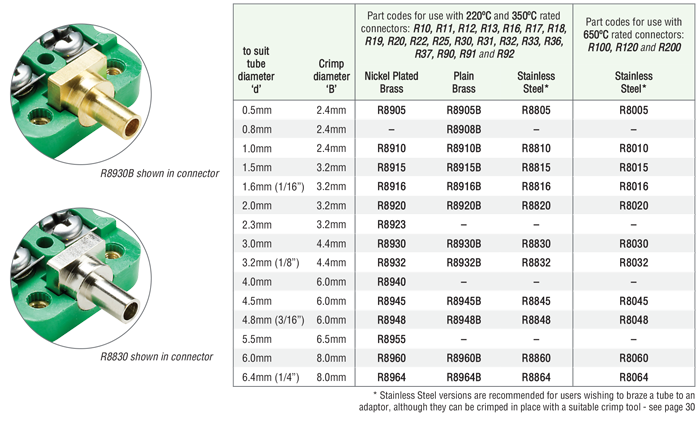

Bore diameters listed are supplied at ‘d’ +0.1mm.

Thermocouple Connector Accessory Enquiry Form

R89** Nickel Plated Brass

Quantity Required

R89**B Plain Brass

Quantity Required

R88** Stainless Steel

Quantity Required

R80** for Ceramic Connectors

Quantity Required
