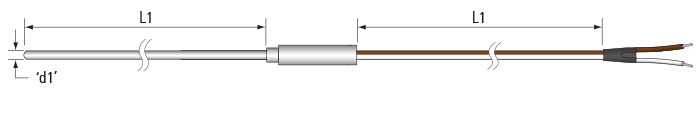

Mineral Insulated Autoclave Thermocouple with Single Shot Cable

Autoclave Thermocouples

  • Mineral insulated thermocouple sensors have a high integrity construction, suited to arduous operating conditions at temperatures from -200ºC to +1400ºC. (The maximum operating temperature is dependant on diameter and environmental factors, further guidance is available here.)
  • Small diameter sensor, ideal for general purpose measurements and also used inside instruments, pliers etc during the autoclave and steriliser cycle
  • High accuracy and stability maintained throughout the operating life of the sensor
  • Fast response and high insulation resistance
  • Available in thermocouple types K and T in sheathe diameters of 1.5mm or 3mm.

Thermocouple Enquiry Form

1a. Thermocouple Type
1b. Tolerance Class
2. Sheath Material

3. Sheath Diameter
4. Sheath Length

 mm
5. Types of Sensing Junction

Illustration Select
INSULATED Junction
GROUNDED Junction
EXPOSED Junction
Duplex Element Required? (please tick box)
Triplex Element Required? (please tick box)
6. Pot Seal Style

Illustration Select
Crimp on St./St. Pot Seal with special insert
(sheath diameters up to 3mm)

End Seal Temperature Rating:

7. Extension Leads

Illustration Select
PTFE Single Shot (rated to 250ºC)
Colour Codes available to IEC 60751
Please enter Cable length in metres

 mtrs
8. Optional Compression Fitting
9. Optional Connector

Illustration Select
Standard 2 pin (round) Plug
Miniature 2 pin (flat) Plug
Standard 2 pin (round) Socket
Miniature 2 pin (flat) Socket
Colour Codes available to IEC 60751

Connector Temperature Rating:

10. Quantity Required

Contact Details

Company Name


Your Name


Title/Dept.


Email


Telephone


Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below



Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.
