Bayonet Thermocouple - Screw on Spring Style (Type 11B)

Plastics Industry Thermocouples

Related Products

Standard Socket

Related Products

Miniature Socket

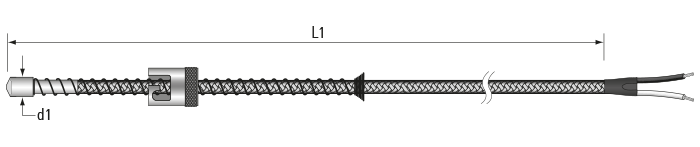

Suitable for plastics machinery and general purpose applications, these bayonet thermocouples are supplied with a 200mm spring on which an industry standard one slot adjustable bayonet cap fitting is screwed onto for fine positioning on site. These assemblies are available in thermocouple types K, T, J, N and E and the sensing tip is incorporated within an 18mm long x 4.7, 6.0 or 8.0mm diameter (specify as d1) tube which the stainless steel braided leads are sealed into.

Bayonet Thermocouple Enquiry Form

1. Thermocouple Type
2. Sheath Diameter

3. Cable Length 'L1'

 mtrs*
4. Optional Thermocouple Plug

5. Quantity Required

Contact Details

Company Name


Your Name


Title/Dept.


Email


Telephone


Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below



Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.
1 Thermocouple Type Temperature Range (continuous) Temperature Range
(short term)
K Nickel Chromium vs
Nickel Aluminium
0°C to +1100°C -180°C to +1350°C
T Copper vs Constantan -185°C to +300°C -250°C to +400°C
J Iron vs Constantan +20°C to +700°C -180°C to +750°C
N Nicrosil vs Nisil 0°C to +1100°C -270°C to +1300°C
E Nickel Chromium vs Constantan 0°C to +800°C -40°C to +900°C
Temperature ranges refer to the thermocouple type.
The temperature range of the sensor may deviate from the above,
please refer to the product description for more details
