Thermocouple with miniature connector

Mineral Insulated Thermocouples

Need a different miniature thermcoouple connector? - click to view other options

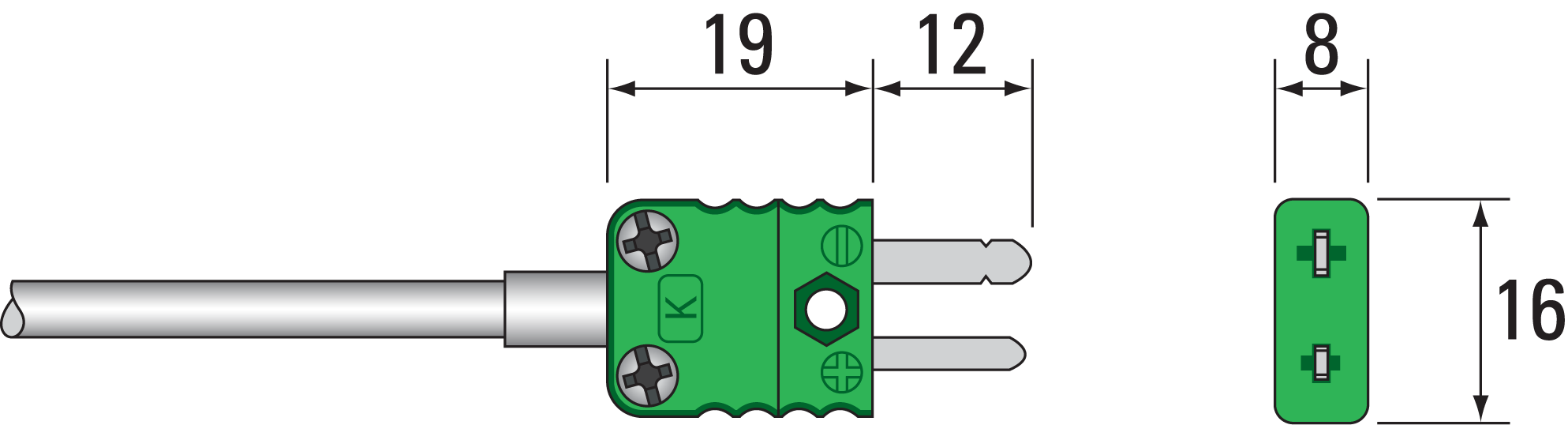

3P6M
3P6M Miniature Plug (220ºC)
for diameters 0.25mm to 3.2mm

Miniature flat pin thermocouple plug with a thermoplastic body rated to 220ºC
3P6MH
3P6MH Miniature Plug (300ºC)
for diameters 0.25mm to 3.2mm

Miniature flat pin thermocouple plug with a thermo setting plastic body rated to 300ºC

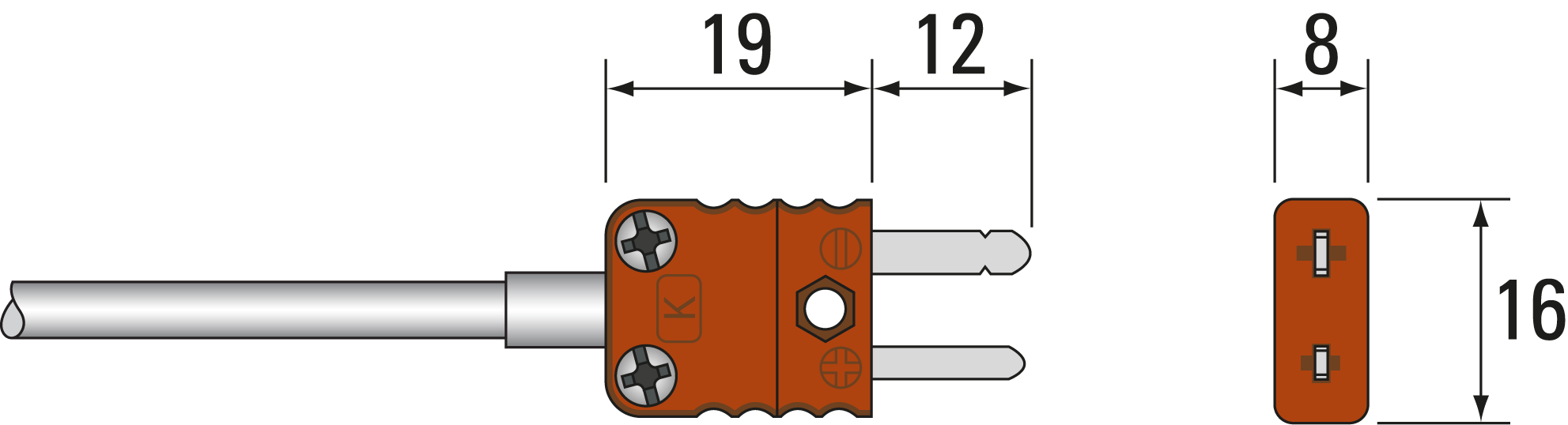

3P6MUH
3P6MUH Miniature Plug (425ºC)
for diameters 0.25mm to 3.2mm

Miniature flat pin thermocouple plug with a thermo setting plastic body rated to 425ºC

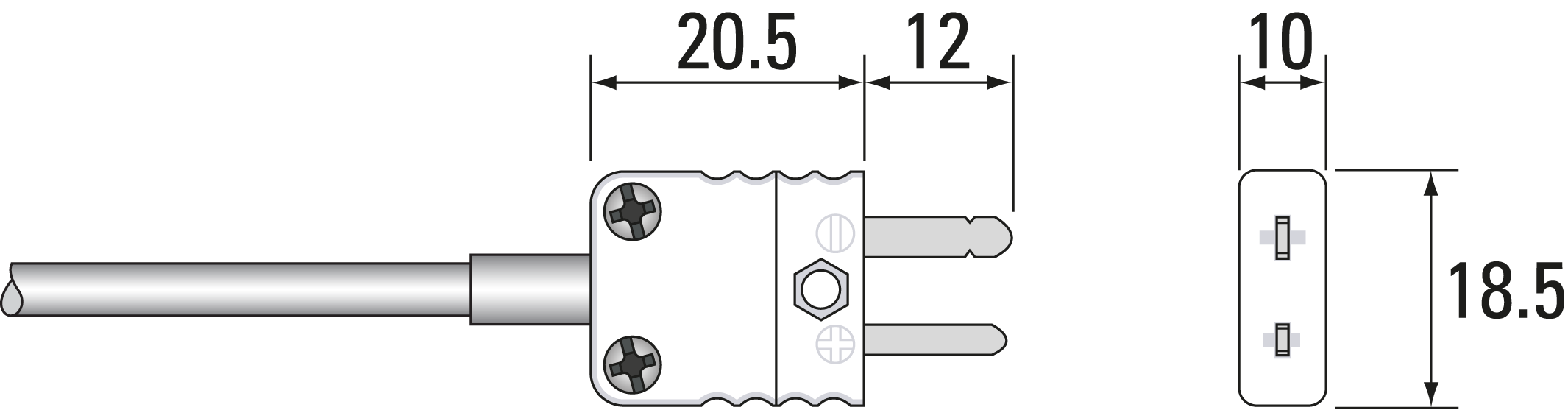

3P6MC
3P6MC Miniature Ceramic Plug (600ºC)
for diameters 0.25mm to 3.5mm

Miniature flat pin thermocouple plug with a ceramic body rated to 600ºC

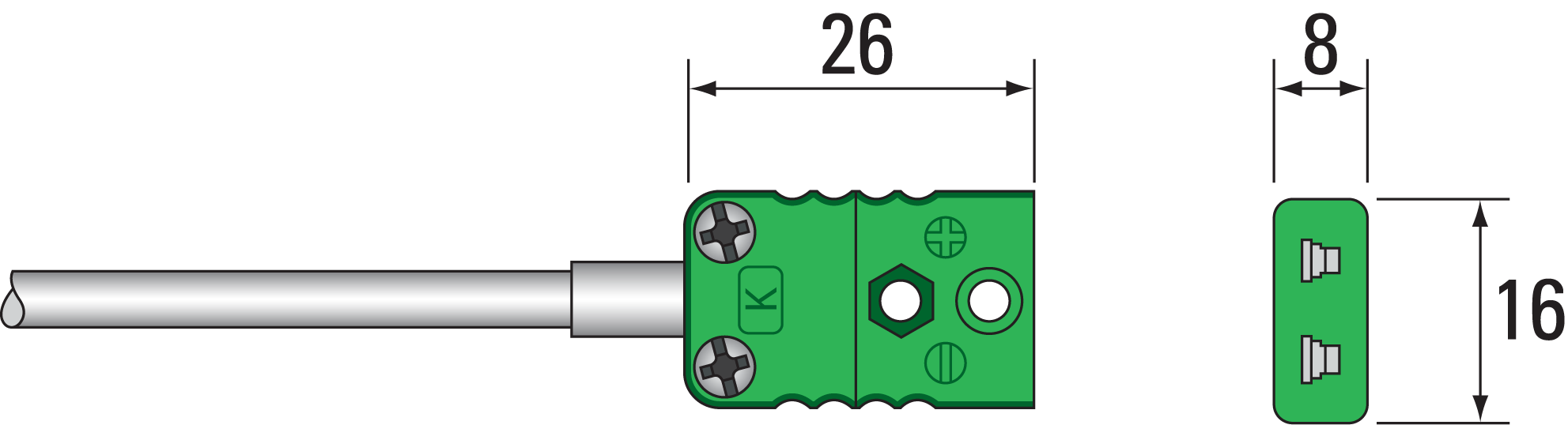

3P7M
3P7M Miniature Socket (220ºC)
for diameters 0.25mm to 3.2mm

Miniature flat pin thermocouple socket with a thermoplastic body rated to 220ºC

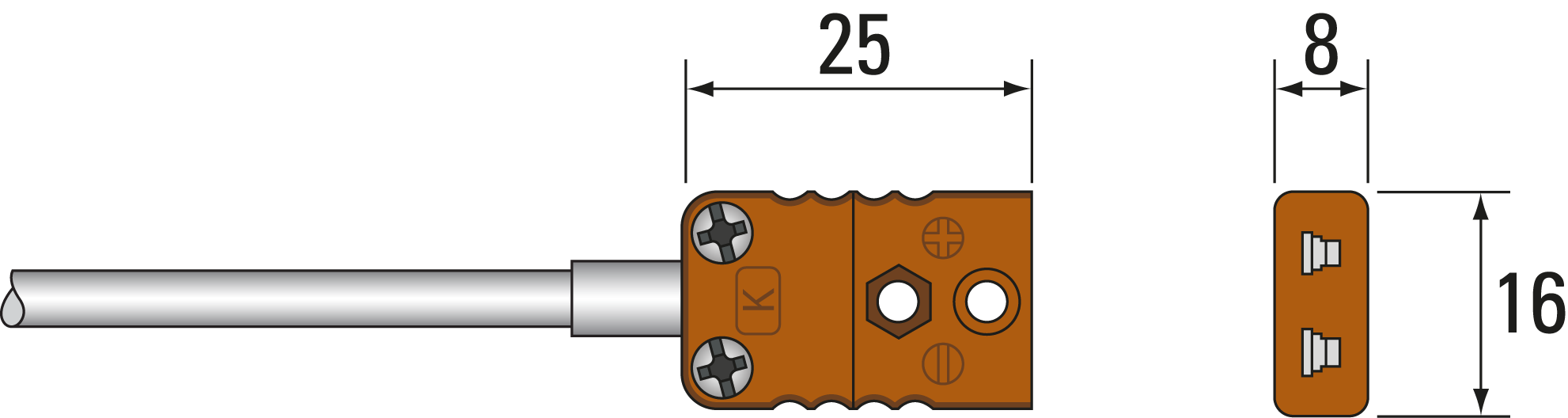

3P7MH
3P7MH Miniature Socket (300ºC)
for diameters 0.25mm to 3.2mm

Miniature flat pin thermocouple socket with a thermo setting plastic body rated to 300ºC

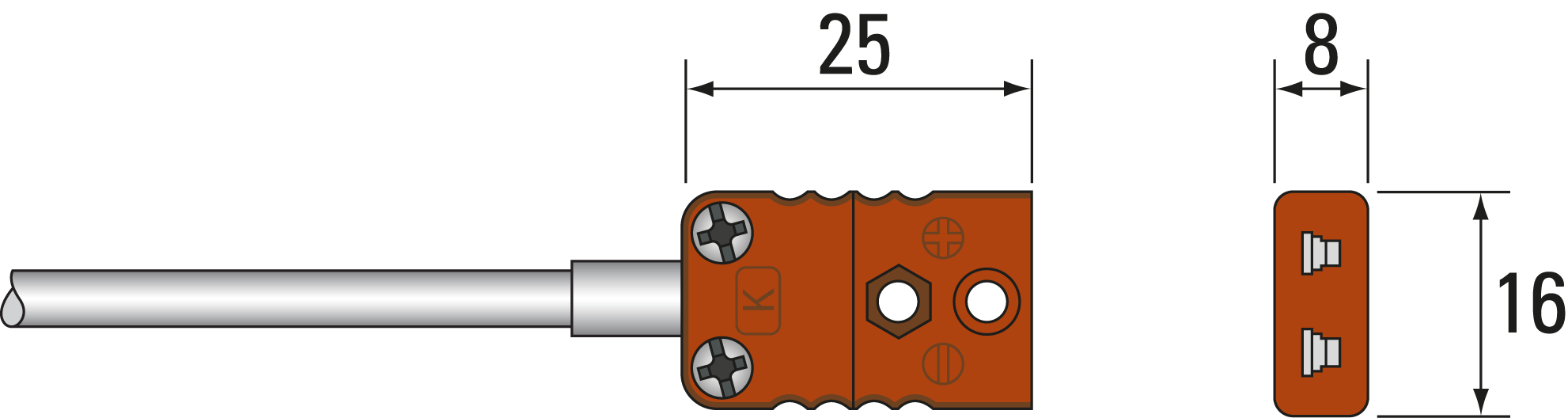

3P7MUH
3P7MUH Miniature Socket (425ºC)
for diameters 0.25mm to 3.2mm

Miniature flat pin thermocouple socket with a thermo setting plastic body rated to 425ºC

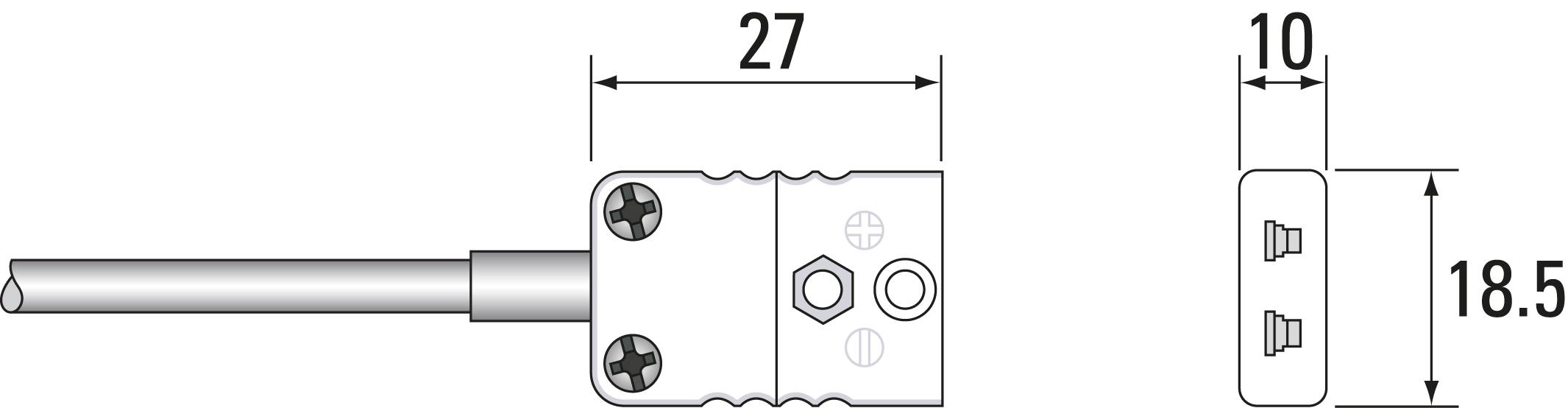

3P7MC
3P7MC Miniature Ceramic Socket (600ºC)
for diameters 0.25mm to 3.5mm

Miniature flat pin thermocouple socket with a ceramic body rated to 600ºC
Request a Quote Buy Online from TC Direct Data Sheet
TC Ltd - Trusted by manufacturers, OEMs and research labs in the UK and Worldwide for over 50 years.

Related Products

Thermocouple Cables
  • Mineral insulated thermocouple sensors have a high integrity construction, suited to arduous operating conditions at temperatures from -200ºC to +1400ºC. (The maximum operating temperature is dependent on diameter and environmental factors, further guidance is available here.)
  • Custom built to your specification and terminated in a choice of miniature connectors as shown above
  • Alternatively, we have a large range of sensors available to buy online in various diameters and lengths
  • High accuracy and stability maintained throughout the operating life of the sensor
  • Fast response and high insulation resistance
  • Available in thermocouple types K, T, J, N, E, R, S & B with sheath diameters from 0.25mm to 3.2mm and lengths from a few millimetres to 200 metres or more dependent on the sheath diameter selected
