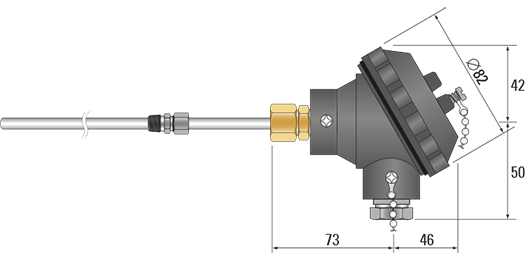

Thermocouple with IP67 Bakelite head

Mineral Insulated Thermocouples

  • Mineral insulated thermocouple sensors have a high integrity construction, suited to arduous operating conditions at temperatures from -200ºC to +1400ºC. (The maximum operating temperature is dependant on diameter and environmental factors, further guidance is available here.)
  • Custom built to your specification and terminated in a weatherproof Bakelite plastic screw top terminal head with tube entry and cable entry at a right angle to each other with a Bakelite terminal block. Suitable for simplex or duplex or triplex assemblies. Supplied with a 20mm x 1.5mm ISO plastic pinch gland on the cable entry for cables from 6mm to 14mm diameter
  • Alternatively, we have a large range of sensors available to buy online in various diameters and lengths
  • High accuracy and stability maintained throughout the operating life of the sensor
  • Fast response and high insulation resistance
  • Available in thermocouple types K, T, J, N, E, R, S & B with sheath diameters from 4.5mm to 8.0mm and lengths from a few millimetres to 200 metres or more dependent on the sheath diameter selected

Thermocouple Enquiry Form

1a. Thermocouple Type
1b. Tolerance Class
2. Sheath Material
3. Sheath Diameter
4. Sheath Length

 mm
5. Types of Sensing Junction

Illustration Select
INSULATED Junction
GROUNDED Junction
EXPOSED Junction
Duplex Element Required? (please tick box)
Triplex Element Required? (please tick box)
6. Optional Compression Fitting
7. Optional 4 to 20mA Transmitter

8. Quantity Required

Contact Details

Company Name


Your Name


Title/Dept.


Email


Telephone


Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below



Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.
