Heavy Duty Magnetic Pt100 Sensor PRT (Type 81HD)

Surface Resistance Thermometers - Pt100 Sensors

Related Products

RTD Pt100 Indicator

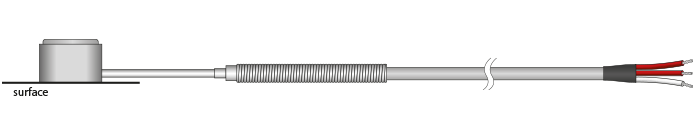

An extremely powerful magnet makes this RTD Pt100 sensor ideal for heavy duty applications where the surface temperature of ferrous materials needs to be measured. The sensor has a magnet strength of 6Kg and is supplied with PVC insulated leads. Available in tolerance classes B or A as standard with an operating temperature range of -10ºC to +80ºC. Magnet Dimensions: 25mm dia. x 13.5mm thick. Available in a 3 or 4-wire configuration.

Magnetic RTD Enquiry Form

1. Tolerance of Element

  Tolerance of Element
(IEC 60751 for Pt100)
Select
Grade Accuracy
@ 0ºC
Accuracy
@ 100ºC

B ±0.30°C ±0.80°C
A ±0.15°C ±0.35°C
2. Cable Length

 mtrs*
3. Wiring Configuration

  Wiring Configuration
(IEC 60751)
Select
3 3 wire (most popular)
4 4 wire
4. Optional Plug Style

Illustration Select
CE7 - Miniature Plug
Plastic, rated to 220ºC (normal)
CE6 - Standard Plug
Plastic, rated to 220ºC (normal)
5. Quantity Required
