Multi Thermocouple Indicator
Hand Held Indicators
Related Products
Hand Held Thermocouples

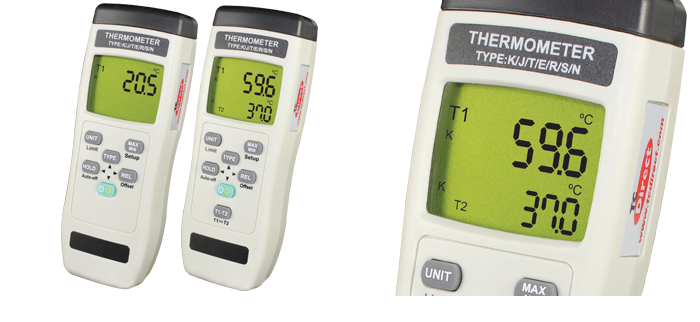

These hand held digital thermocouple indicators accept K T J N E R & S thermocouple types and have a clear LCD display. They have either one or two thermocouple inputs dependent upon model selected. The dual unit allows the user to make two readings which can be viewed alternately as required or a differential reading can be obtained at the touch of a button showing the difference in temperature between the two thermocouples. An audible alarm can be set for high or low points to keep track of the process easily. There is also a thread on the back of a unit to allow the user to mount the indicator to a tripod or stand. Other features include max/min/avg display and data hold function keys, timer, a °C/°F/K transfer key and an ergonomically designed keypad with non-slip function keys.
- Capable of receiving either one or two thermocouple inputs dependent upon model selected
- Hand held, supplied with carry case
- Resolution: Types K, T, J, N and E: 0.1°C/0.1°F/0.1K, Types R and S: 1.0°C/1.0°F/1.0K
- Accuracy: Types K, T, J, N and E: ±0.05% of reading +0.6°C
(-100°C to +1372°C), Types R and S: ±0.05% of reading +2°C (0°C to 1767°C) - Hand held, supplied with carry case
- Read rate: once per second
- Suitable for use with most thermocouple types connected via a miniature flat pin plug
- Weight 200g approx.
- Power supply: 1 x 9V battery (supplied)
- Dimensions: 155x56x40mm (LxWxH)
- Suitable for use with most thermocouple types connected via a miniature flat pin plug
