FEP Insulated Thermocouple (Type 33)

General Purpose Thermocouples

Related Products

Miniature Socket

Related Products

Standard Socket

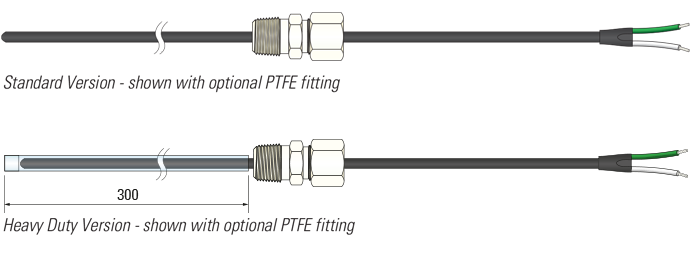

These flexible FEP insulated thermocouples are ideally suited to applications which require resistance to attack from virtually all known chemicals, oils and fluids. Available in K, T, J, E and N thermocouple types, 4mm in diameter, the length of which can be cut down to an exact size by the user if necessary. The sensing junction is encapsulated in the tip and the whole sensor is rated to 200°C.

A heavy duty version is also available with a heavy duty FEP plug ended sheath overall, 300mm as standard but other lengths are available upon request. Maximum length 5mtrs.

FEP Insulated Thermocouple Enquiry Form

1. Version Required

Description Select
STANDARD (33)
HEAVY DUTY (33HD)
1a. FEP Plug Ended Tube Length (mm)

(300mm standard)  mm
2. Thermocouple Type
3. Overall Length (max. 5mtrs)

 mtrs
4. Optional PTFE Fitting

5. Optional Thermocouple Plug

6. Quantity Required

Contact Details

Company Name


Your Name


Title/Dept.


Email


Telephone


Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below



Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.
