Heavy Duty Magnet Thermocouple (Type 31HD)

General Purpose Thermocouples

Send Enquiry Buy Online Request Info

Related Products

Multi Thermocouple Indicator

Related Products

Hand Held 4 Channel Datalogger with Bluetooth

Related Products

Standard Socket

Related Products

Miniature Socket

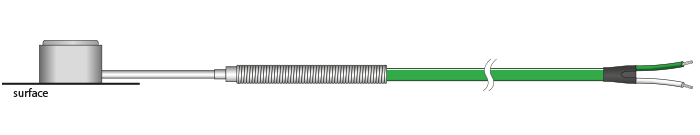

An extremely powerful magnet makes this thermocouple sensor ideal for heavy duty applications where the surface temperature of ferrous materials needs to be measured. The sensor has a magnet strength of 6Kg and is supplied with PVC insulated leads. Available in thermocouple types K, T, J, N or E as standard with an operating temperature range of -10ºC to +80ºC. Magnet Dimensions: 25mm dia. x 13.5mm thick.

Magnetic Thermocouple Enquiry Form

1. Thermocouple Type

2. Measuring Junction

3. Cable Length

mtrs

4. Optional Thermocouple Plug

5. Quantity Required

Qty Required

Contact Details

Company Name

Your Name

Title/Dept.

Email

Telephone

Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below

Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.

Products

Contact Us

About TC

FREE Guide

Privacy Policy

Terms and Conditions

Sitemap

FREE Wallchart Guide to
Thermocouples and RTD Sensors

Join over 500,000 engineers and buyers who have already received our FREE 74 page A3 Guide to Thermocouple and Resistance Thermometry

Company Name		Address 1
Your Name		Address 2
Title / Dept.		County / Region / State
Email		Postcode / ZIP Code
Telephone		Country

Company Name

Your Name

Title / Dept.

Address 1

Address 2

County / Region / State

Postcode / ZIPCode

Country

Telephone

We will only ever use the information you provide to occasionally contact you regarding our products and we will never disclose your details to a third party. Our privacy policy can be viewed here

I agree to the terms and conditions listed in the Privacy Policy

Thermocouple Sensors

Platinum Resistance Thermometers

Cable

Miniature Thermocouple Connectors

Standard Thermocouple Connectors

Instrumentation

Temperature Accessories

Calibration

Pressure

1	Thermocouple Type	Temperature Range (continuous)	Temperature Range (short term)
K	Nickel Chromium vs Nickel Aluminium	0°C to +1100°C	-180°C to +1350°C
T	Copper vs Constantan	-185°C to +300°C	-250°C to +400°C
J	Iron vs Constantan	+20°C to +700°C	-180°C to +750°C
N	Nicrosil vs Nisil	0°C to +1100°C	-270°C to +1300°C
E	Nickel Chromium vs Constantan	0°C to +800°C	-40°C to +900°C
Temperature ranges refer to the thermocouple type. The temperature range of the sensor may deviate from the above, please refer to the product description for more details
