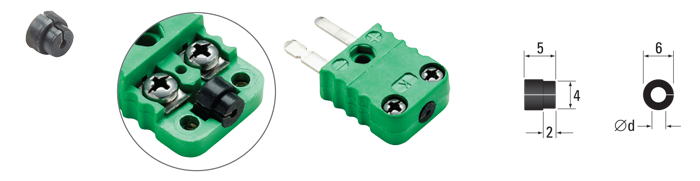

F41 Cable Grommet

Accessories for Miniature Connectors

Send Enquiry Buy Online Request Info Connector Catalogue

Related Products

Miniature Plug Miniature Socket - Three Pin Miniature Plug - Three Pin Miniature Plug - Duplex Miniature Panel Plug - Lugged Miniature Socket
Application
The cable grommet is fitted into the exit hole of the connector which prevents dirt or moisture entering the connector when used with wires or cable.
Construction
Silicone rubber ring with collar, slit for easy use. Compresses on the wire or cable when connector is fully assembled.

Temperature Rating
200ºC.

Thermocouple Connector Accessory Enquiry Form

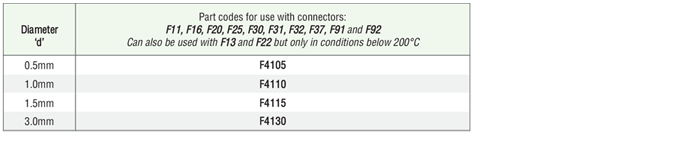

F41** Required Size

Quantity Required

Contact Details

Company Name


Your Name


Title/Dept.


Email


Telephone


Additional Information

If your enquiry is for more than one style of connector, please email us with your requirements or use the box below



Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.

Frequently Asked Questions

  • What are thermocouple connectors, and why are they important?
    Thermocouple connectors are used to connect thermocouples to measurement devices or other equipment. They provide a reliable connection for transmitting the temperature signal from the sensor while ensuring accurate and consistent readings. The choice of connector material and temperature rating is crucial to ensure that the connector performs well in various environments, especially at high temperatures.
  • What are the different temperature ratings available for your thermocouple connectors?
    We offer thermocouple connectors in three temperature ratings: 220ºC, 350ºC, and 650ºC. The temperature rating you need will depend on the maximum temperature the connector reaches. For most applications, the 220ºC rated connector is suitable, while for more demanding applications with higher ambient temperatures, the 350ºC or even 650ºC ceramic connectors are better suited.
  • Do you offer accessories for thermocouple connectors?
    Yes, we offer a wide range of accessories for thermocouple connectors, including sensor and cable supports and adaptors, mounting brackets and protective covers. These accessories are designed to enhance the functionality and reliability of our thermocouple connectors, ensuring ease of installation and long-lasting performance. If you need specific recommendations, feel free to contact our engineers for assistance.
  • What is a thermocouple connector panel?
    A thermocouple connector panel is a centralised unit designed to house multiple thermocouple connectors, allowing for organised and efficient connection of multiple thermocouple sensors to measurement equipment. It streamlines the wiring process and ensures secure, reliable connections in applications requiring multiple thermocouples. Available in both aluminium and stainless steel, these panels come in various configurations and capacities to suit different needs.
