You are here → Home > Temperature Sensors > Thermocouples > General Purpose > Ceramic Insulated Thermocouple

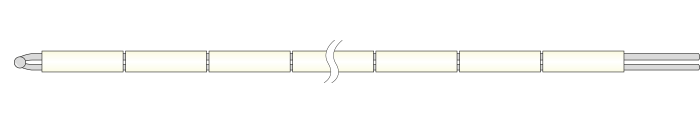

Ceramic Insulated Thermocouple (Type 2)

General Purpose Thermocouples

Send Enquiry Buy Online Request Info

Related Products

Miniature Socket

Related Products

Standard Socket

Related Products

Heavy Duty Industrial Metal Sheathed Thermocouples

Related Products

High Temperature Ceramic Sheathed Thermocouples

These ceramic insulated thermocouples are suitable for general use and as replacement elements for industrial and high temperature assemblies similar to our Types 13 and 14 (as inserts). Type 2 sensors are available for thermocouple types K, T, J, N and E with insulators in Aluminous Porcelain and for types R, S and B with insulators in Recrystallised Alumina. The length of insulators is 25mm, 50mm or 100mm depending on the application and availability. Insulators with 4 bores are available for duplex applications, please contact us for further details.

Ceramic Insulated Thermocouple Enquiry Form

1. Thermocouple Type

2. Style Number

3. Overall Length

mtrs*

4. Optional Thermocouple Plug

5. Optional Terminal Block

6. Quantity Required

Qty Required

Contact Details

Company Name

Your Name

Title/Dept.

Email

Telephone

Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below

Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.

Products

Contact Us

About TC

FREE Guide

Privacy Policy

Terms and Conditions

Sitemap

FREE Wallchart Guide to
Thermocouples and RTD Sensors

Join over 500,000 engineers and buyers who have already received our FREE 74 page A3 Guide to Thermocouple and Resistance Thermometry

Company Name		Address 1
Your Name		Address 2
Title / Dept.		County / Region / State
Email		Postcode / ZIP Code
Telephone		Country

Company Name

Your Name

Title / Dept.

Address 1

Address 2

County / Region / State

Postcode / ZIPCode

Country

Telephone

We will only ever use the information you provide to occasionally contact you regarding our products and we will never disclose your details to a third party. Our privacy policy can be viewed here

I agree to the terms and conditions listed in the Privacy Policy

Thermocouple Sensors

Platinum Resistance Thermometers

Cable

Miniature Thermocouple Connectors

Standard Thermocouple Connectors

Instrumentation

Temperature Accessories

Calibration

Pressure

1	Thermocouple Type	Temperature Range (continuous)	Temperature Range (short term)
K	Nickel Chromium vs Nickel Aluminium	0°C to +1100°C	-180°C to +1350°C
T	Copper vs Constantan	-185°C to +300°C	-250°C to +400°C
J	Iron vs Constantan	+20°C to +700°C	-180°C to +750°C
N	Nicrosil vs Nisil	0°C to +1100°C	-270°C to +1300°C
E	Nickel Chromium vs Constantan	0°C to +800°C	-40°C to +900°C
R	Platinum - 13% Rhodium vs Platinum	0°C to +1600°C	-50°C to +1700°C
S	Platinum - 10% Rhodium vs Platinum	0°C to +1550°C	-50°C to +1750°C
B	Platinum - 30% Rhodium vs Platinum 6% Rhodium	+100°C to +1600°C	+100°C to +1820°C
Temperature ranges refer to the thermocouple type. The temperature range of the sensor may deviate from the above, please refer to the product description for more details
