Hand Held Surface Thermocouple Probes (Type 5)

Surface Thermocouples

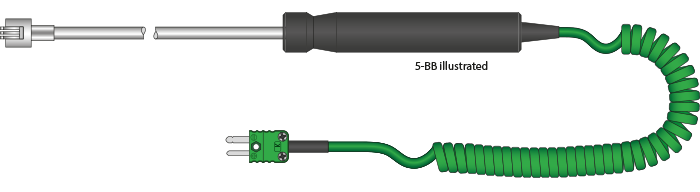

Typical Hand Held Thermocouple Probe
We offer a wide range of hand held surface thermocouple probes to suit a variety of surface temperature measurement applications. Depending on the thermocouple type, these probes can be supplied with a 1, 2, 5 or 10 metre (extended) coiled lead and a miniature flat pin plug which makes them suitable for all our hand held indicators as well as most other brands of indicators. They can also be connected to other instrumentation by using extension cable and the appropriate connectors.

Style Description Tip Image
BB

Spring Loaded Surface Probe

This sensor has a ribbon style butt welded sensing tip which allows a fast response when placed upon a solid surface.
The tip is rated to 400°C and the handle to 135°C.
Sheath: 6.35mm dia x 165mm long (from handle to tip)
Spring Loaded Surface Probe Tip
CC

Heavy Duty Spring Loaded Surface Probe

A robust version of style 5BB with a larger butt welded ribbon junction. Whilst stronger, the response time is slightly slower; however, in most applications it is perfectly acceptable. The tip is rated to 400°C and the handle to 135°C.
Heavy Duty Spring Loaded Surface Probe Tip
DD

Spring Loaded Surface Probe with 90º Bend

As style 5BB, but the sensing tip is positioned at a right angle for difficult to reach applications. The tip is rated to 400°C and the handle to 135°C. Sheath: 6.35mm dia x 195mm long (140mm to start of bend).
Spring Loaded Surface Probe with 90º Bend
EE

Heavy Duty Spring Loaded Surface Probe with 90º Bend

A robust version of style 5CC with a larger butt welded ribbon junction. Whilst stronger, the response time is slightly slower; however, in most applications it is perfectly acceptable. The tip is rated to 400°C and the handle to 135°C.
Heavy Duty Spring Loaded Surface Probe with 90º Bend



Enquiry Form for Hand Held Surface Thermocouple Probes

1. Thermocouple Type
2. Style Number

3. Cable Length

4. Quantity Required

Contact Details

Company Name


Your Name


Title/Dept.


Email


Telephone


Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below



Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.
